EFD Transformer

high frequency transformer    EFD SERIES

Characteristics &Application Rang:
EFD High Frequency Transformer series feature low magnetic leakage, low loss, wide operating frequency and strong interference immunity. They are widely used in switching supplies, fax machines, TV sets and displays.

PART NO. & DIMENSIONS LINE:

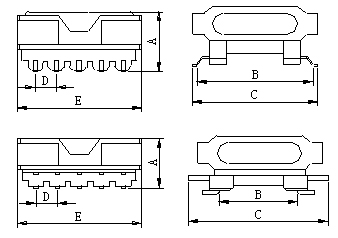

Part NO.THRMINAL PINSDimensions in mm(inches)FIG
ABC±0.5D±0.5E±0.5
HT-EFD-128617203.013.52
HT-EFD-15107.318.221.352.5151
HT-EFD-15107.519.322.63.016.72
HT-EFD-20109.425.327.73.7521.72
HT-EFD-20129.72426.83201
HT-EFD-251013.429.735.45252
HT-EFD-251012.629.731.55251
HT-EFD-301212.631.635.35302

[Note: power and external dimensions of transformer may be designed to customers requirements.]
