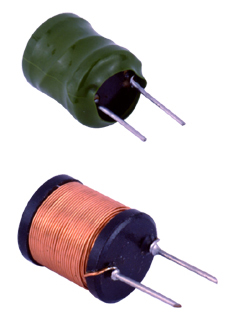

Choke Coil
Characteristics &Application Rang:
It is small but generates big output current. It features strong choking and small distributed electric capacity. It is used in ballasts, energy-saving lamps, radios, UPS, EMC, filters and electrical appliance.PART NO. & DIMENSIONS LINE:

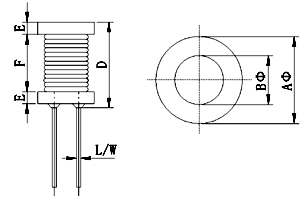

| Part NO. | Dimensions in mm(inches) | |||||
| AΦ | BΦ | D | E | F | P（REF） | |
| HT-DR2W 3×4 | 3.5±0.15 | 1.5±0.15 | 4.0±0.3 | 1.25±0.15 | 1.5±0.15 | 1.45 |
| HT-DR2W 4×5.5 | 4.0±0.15 | 2.0±0.15 | 5..5±0.3 | 1.6±0.15 | 2.3±0.15 | 1.75 |
| HT-DR2W 4×5.5 (S) | 4.5±0.15 | 2.0±0.15 | 5.5±0.3 | 1.6±0.15 | 2.3±0.15 | 1.75 |
| HT-DR2W 5×7 P2.5 | 5.0±0.15 | 2.0±0.15 | 7.0±0.3 | 2.0±0.15 | 3.0±0.15 | 2.5 |
| HT-DR2W 6×8.3(S) | 6.0±0.2 | 2.5±0.2 | 8.3±0.3 | 2.15±0.15 | 4.0±0.15 | 3.0 |
| HT-DR2W 8×10 | 8.0±0.2 | 3.5±0.15 | 10.0±0.4 | 2.25±0.15 | 5.5±0.2 | 5.0 |
| HT-DR2W 9×12 | 9.0±0.3 | 4.0±0.15 | 12.0±0.3 | 2.5±0.15 | 7.0±0.2 | 5.0 |
| HT-DR2W 10×12 | 10.0±0.3 | 4.0±0.2 | 12.0±0.3 | 2.5±0.15 | 7.0±0.2 | 5.0 |
| HT-DR2W 10×16 | 10.3±0.3 | 5.0±0.2 | 16.0±0.3 | 3.0±0.15 | 10.0±0.2 | 5.0 |
| HT-DR2W 14×15 | 14.0±0.3 | 5.3±0.15 | 15.0±0.3 | 3.0±0.15 | 9.0±0.2 | 7.5 |
| HT-DR2W 16×18 | 16.0±0.3 | 8.0±0.2 | 18.0±0.3 | 2.75±0.2 | 12.5±0.2 | 10.0 |
| HT-DR2W 18×18 | 118.0±0.3 | 10.0±0.2 | 18.0±0.4 | 4.0±0.2 | 10.0±0.2 | 13.0 |
| HT-DR2W 18×20 | 18.0±0.3 | 10.0±0.2 | 20.0±0.4 | 5.0±0.2 | 10.0±0.2 | 13.0 |
